Picture | Model | Rated Voltage | No-load Speed | No-load Current | Load Speed | Load Current | Load Torque | Driving Methods | Power | Spec Download |
BRUSHLESS MOTOR Series | ||||||||||

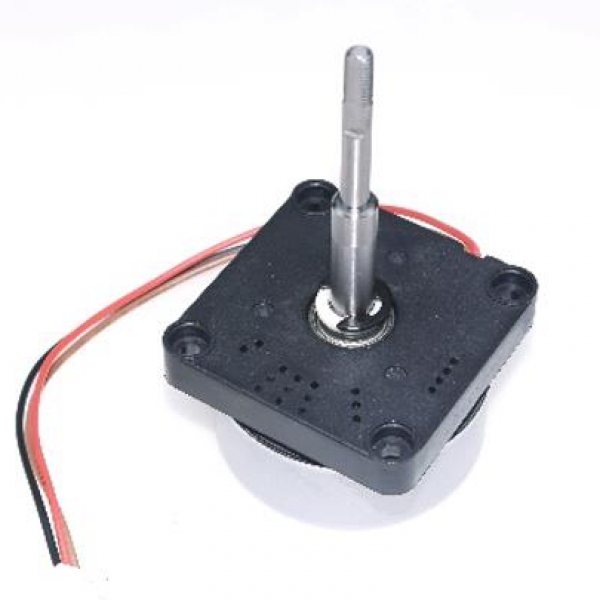

BM42x | DC5/12/24v | 2500rpm | 0.2A max | 2300rpm | 1.2A max | 50mN.m |
PWM (1-15k) |
25W | BM42x-SPEC | |
BM45Sx | DC12/24v | 3600rpm | 0.2A max | 3000rpm | 1.25A max | 50mN.m |
PWM (1-15k) |
30W | BM45Sx-SPEC | |
BM45x | DC12/24v | 3600rpm | 0.2A max | 3000rpm | 1.25A max | 50mN.m |
PWM (1-15k) |
30W | BM45x-SPEC | |
BM48x | DC12/24v | 3600rpm | 0.3A max | 3200rpm | 2.0A max | 50mN.m |
PWM (1-15k) |
35W | BM48x-SPEC | |
BM52x | DC5/12/24v | 3000rpm | 0.3A max | 3000rpm | 2.0A max | 50mN.m |
PWM (1-15k) |
30W | BM52x-SPEC | |
BM55x |
DC12/24/ 36v |
3600rpm | 0.5A max | 3200rpm | 1.9A max | 55mN.m |
PWM (1-15k) |
45W | BM55x-SPEC | |
Inverter Fan Series | ||||||||||
BM63Sx | DC12/24v | 1500rpm | 0.12A max | 1200rpm | 2.3A max | 82mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
55W | BM63Sx-SPEC | |
BM63x |
DC12/24/ 36v |
1500rpm | 0.12A max | 1200rpm | 2.3A max | 82mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
55W | BM63x-SPEC | |
BM71x | DC12/24v | 2500rpm | 0.15A max | 1500rpm | 2.5A max | 85mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
60W | BM71x-SPEC | |
BM80x | DC12/24v | 2100rpm | 0.2A max | 1300rpm | 2.7A max | 90mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
65W | BM80x-SPEC | |
Air Purifier/Ventilation Fan & smoke exhauster Series | ||||||||||
BM86x | DC12/24v | 1500rpm | 0.15A max | 1200rpm | 2.9A max | 90mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
68W | BM86x-SPEC | |
BM88x | DC12/24v | 2300rpm | 0.2A max | 2000rpm | 2A max | 89mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
68W | BM88x-SPEC | |
BM92x | DC310v | 1500rpm | 0.1A max | 1200rpm | 0.3A max | 150mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
80W | BM92x-SPEC | |
BM97x | DC310v | 1500rpm | 0.1A max | 1200rpm | 0.35A max | 160mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
85W | BM97x-SPEC | |
BM105x | DC310v | 13500rpm | 0.1A max | 1000rpm | 0.4A max | 165mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
100W | BM100x-SPEC | |
BM120x | DC310v | 1500rpm | 0.1A max | 1050rpm | 0.5A max | 170mN.m |
PWM (1-15k) VSP(0.5-4.7V) |
120W | BM120x-SPEC |
